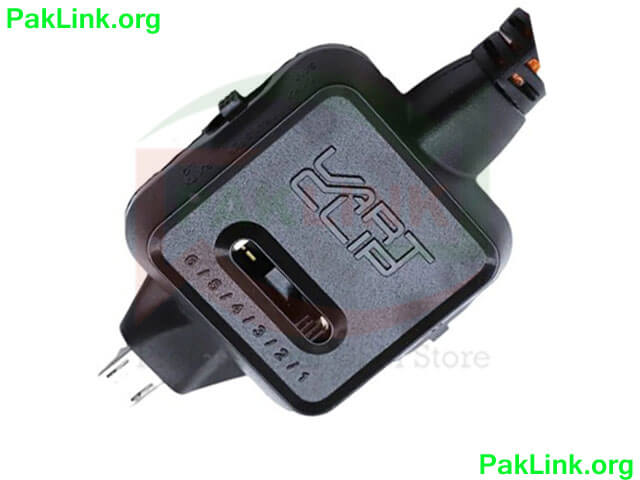

UART CLIP CABLE WITH RESISTOR SWITCH FOR SAMSUNG LG C3303 S5620 UNLOCK FLASH REPAIR
SKU: PL-00246
Rating
USD 20USD 14
All Samsung and LG models that require specific resistance in K Ohm described under "function" section of this listing. This Multi-functional UART Clip is a special cable that is very versatile and useful for today's mobile phone decoding engineers. You can use this cable for Flashing, decoding, Repair, Putting phones into Download mode. This cable gives you the flexibility you need, offering a large range of resistance values, which are often needed to perform certain functions when working with modern Samsung and LG phones. For example you may have a Samsung Galaxy S4 that needs flashing, but its volume down button is damaged and you cannot put in download mode. with this cable, simply set 619K resistor value and plug into phone in powered off, mobile will auto power on and will be in download mode, now you can flash your phone as normal. You can see the different resistor settings below, these can be set then connected to the phone. This is very unique and powerful cable which every service center needs. Can use with almost all kind of box
- Z3x box Samsung
- Z3x box Samsung & LG
- Octopus box Samsung
- Octopus box LG
- Octopus box Samsung & LG
- Octoplus box
- Vygis box
- Infinity box
- Asansam box (ASB)
- UST box
- Polar box 2
UART Clip - Resistor values and Some Supported modes info:
- 619K - Samsung Factory On S4
- Supported phone models: Samsung S5620, C3303, I9250 etc.
- 523K - Samsung Factory Mode OFF
- Supported phone models: Samsung S3350, I9500 S4, T369, C3630C, C3530, C3500 etc.
- 301K - Samsung Factory Mode ON
- Supported phone models: Samsung I9100, M250S, T959, I9000, M110S, 18700 etc.
- 255K - Samsung Factory Mode OFF
- Supported phone models: Samsung A400 etc.
- 150K - Samsung Unlocking & Flashing
- Supported phone models: phones that require UART connection, like C3300, C3303K etc.
- 102K - LG Unlocking & Flashing
- Supported phone models: LG GS100,GGS101,GS101GO, GS102, GS105, GS106, GS107,GS107a, GS107b, GW300 etc.
All Samsung and LG models that require specific resistance in K Ohm described under "function" section of this listing. This Multi-functional UART Clip is a special cable that is very versatile and useful for today's mobile phone decoding engineers. You can use this cable for Flashing, decoding, Repair, Putting phones into Download mode. This cable gives you the flexibility you need, offering a large range of resistance values, which are often needed to perform certain functions when working with modern Samsung and LG phones. For example you may have a Samsung Galaxy S4 that needs flashing, but its volume down button is damaged and you cannot put in download mode. with this cable, simply set 619K resistor value and plug into phone in powered off, mobile will auto power on and will be in download mode, now you can flash your phone as normal. You can see the different resistor settings below, these can be set then connected to the phone. This is very unique and powerful cable which every service center needs. Can use with almost all kind of box
- Z3x box Samsung
- Z3x box Samsung & LG
- Octopus box Samsung
- Octopus box LG
- Octopus box Samsung & LG
- Octoplus box
- Vygis box
- Infinity box
- Asansam box (ASB)
- UST box
- Polar box 2
UART Clip - Resistor values and Some Supported modes info:
- 619K - Samsung Factory On S4
- Supported phone models: Samsung S5620, C3303, I9250 etc.
- 523K - Samsung Factory Mode OFF
- Supported phone models: Samsung S3350, I9500 S4, T369, C3630C, C3530, C3500 etc.
- 301K - Samsung Factory Mode ON
- Supported phone models: Samsung I9100, M250S, T959, I9000, M110S, 18700 etc.
- 255K - Samsung Factory Mode OFF
- Supported phone models: Samsung A400 etc.
- 150K - Samsung Unlocking & Flashing
- Supported phone models: phones that require UART connection, like C3300, C3303K etc.
- 102K - LG Unlocking & Flashing
- Supported phone models: LG GS100,GGS101,GS101GO, GS102, GS105, GS106, GS107,GS107a, GS107b, GW300 etc.
